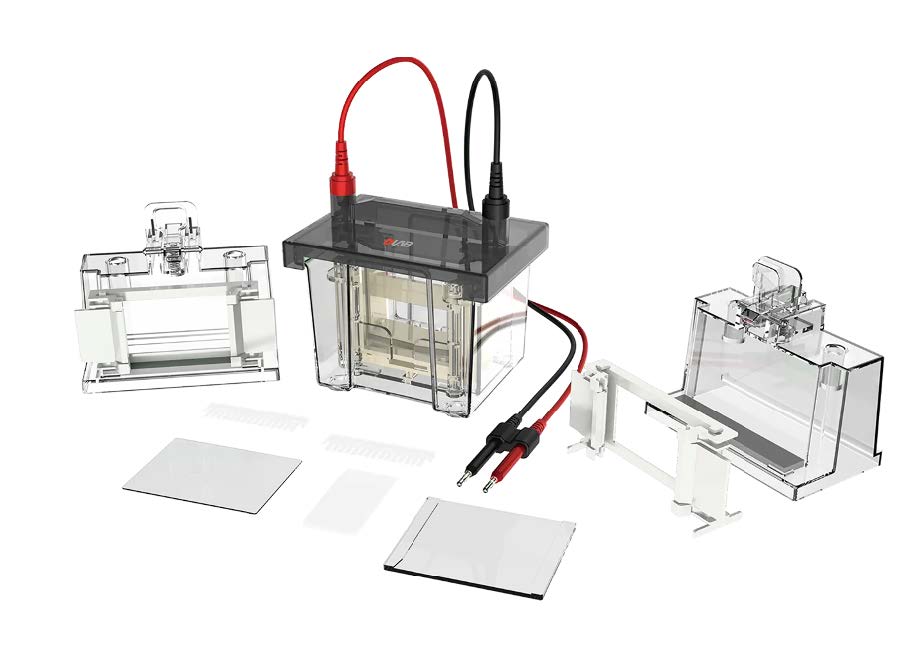

• Designed for vertical electrophoresis of small nucleic acid and protein samples.
• The integrated glass plate and gasket design eliminates gel leakage.
• Supports the simultaneous run of two gels (8.3 × 7.3 cm).
• Includes a dedicated gel casting system that is simple, reliable, and easy to operate.
• Silicone sealing pad is durable and resistant to aging.
• Automatic power-off safety function triggers when the lid is opened.
• Lid locking mechanism prevents incorrect installation of positive and negative electrodes.
• High-purity (99.99%) platinum electrodes ensure excellent conductivity, corrosion resistance, and long service life.
• Available with multiple spacer thicknesses and sample comb configurations to accommodate different experimental needs.
• Compatible with model DL-ZY02.

• Designed for fast and high-quality transfer of small protein gels.
• The tank is manufactured from high-transparency polycarbonate using a single-piece injection molding process, providing leak-free performance and strong impact resistance.
• The positive electrodes are spaced 4 cm apart to generate a strong electric field for efficient protein transfer.
• High-purity (99.99%) platinum electrodes ensure superior conductivity, corrosion resistance, and long service life.
• Incorporates multiple safety features to prevent operational hazards.
• Optional built-in ice box or Blue cooling module rapidly absorbs heat generated during electrophoresis.
• Open-style gel holder cassette for simple and convenient handling.
• Supports the simultaneous transfer of two 83 × 73 mm gels.

• The edge gasket is permanently mounted on the long glass plate to ensure precise alignment and prevent gel leakage.
• The cam-lock gel frame allows quick operation and accurate plate alignment on any surface.
• Special polymer electrophoresis combs do not inhibit gel polymerization, and the built-in ridges minimize air exposure for uniform gel formation.
• The reinforced long glass plate, featuring a thickened edge gasket, reduces the risk of breakage.
• The single-piece gel filling rack supports parallel loading, enabling simultaneous observation of two gels.
• SDS-PAGE runtime is typically 45 minutes at 200 V constant voltage.
• High-purity platinum electrodes provide optimal conductivity.
• Fully compatible with accessories and specifications of equivalent imported systems.
• Compatible with model DL-ZY03 for blotting applications.

• Designed for rapid and high-quality transfer of small protein gels.
• The tank is manufactured from high-transparency polycarbonate via single-piece injection molding, ensuring leak-free operation and excellent impact resistance.
• Capable of transferring two 83 × 73 mm gels simultaneously.
• A 4 cm gap between the positive and negative electrodes generates a strong electric field for efficient protein transfer.
• High-purity (99.99%) platinum electrodes provide superior conductivity, corrosion resistance, and long service life.
• Equipped with an integrated Blue cooling unit to rapidly dissipate heat produced during electrophoresis.
• Open-style gel holder cassette enables simple and intuitive operation.
• Includes specialized bubble roller to facilitate bubble removal.

• LCD Touchscreen: Streamlined setup, programming, and real-time monitoring.
• High Precision Output: Adjustable voltage, current, and power with automatic mode switching.
• Data Logging: USB support for real-time data recording and post-run analysis.
• Flexible Programming: Multi-step protocols with tabular input.
• Stable Operation: Multi-CPU control architecture ensures performance and reliability.
• Power Failure Recovery: Configurable ON/OFF recovery mode based on experimental requirements.
• Low-Current Maintenance Mode: User-selectable ON/OFF control.
• Safety Protection & Alarms: Short-circuit and no-load protection with adjustable buzzer alerts.
• Compact, Stackable Design: Anti-slip grooves allow stacking multiple units to optimize bench space.
• Multi-Output Capability: Four output sockets support up to four electrophoresis units simultaneously.

The DEP-600 model supports the widest range of electrophoresis applications, meeting the power requirements of small vertical systems, high-throughput electrophoresis, and blotting. Suitable for SDS-PAGE, Native-PAGE, routine protein analysis, DNA/RNA electrophoresis, and similar workflows.
