Ricerca nel catalogo

PCR & Real-Time PCR Systems

Limited-Time Promotion
Scarica scheda

Real-Time PCR Systems

Q9600 Pro Series

High-performance fluorescence detection for accurate gene amplification.

Promotion

Model Detection Channel List Price Promo Price
Q9602PRO 2 Channels (96×0.2 mL) 14.000 € 11.523 €
Q9604PRO 4 Channels (96×0.2 mL) 16.000 € 12.899 €
Q9606PRO 6 Channels (96×0.2 mL) 18.000 € 14.283 €

Feature Q9600 Pro Series

01.
With 12.1-inch LCD touchscreen, real-time monitoring of operating conditions, and can be run offline
02.
Up to 100 projects can be preset, and it is convenient and fast to run frequently used projects with one click.
03.
With temperature gradient function, 12 rows of gradient temperature settings can be realized at a time.
04.
Maximum ramping rate 8°C/s, saving the test time.
05.
LED light source has the advantage of energy saving, environmental protection, long service life and maintenance free.
06.
Strong fluorescence signal, low background noise and high sensitivity.

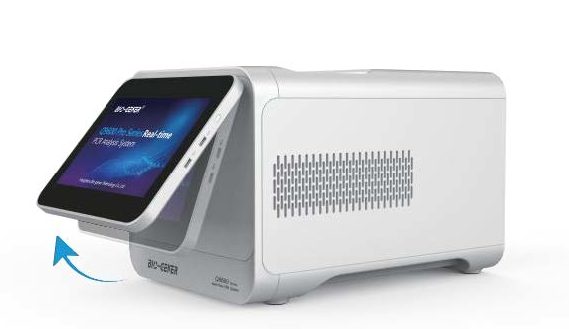

12.1” retractable LCD touch screen,
the screen angle can be adjusted

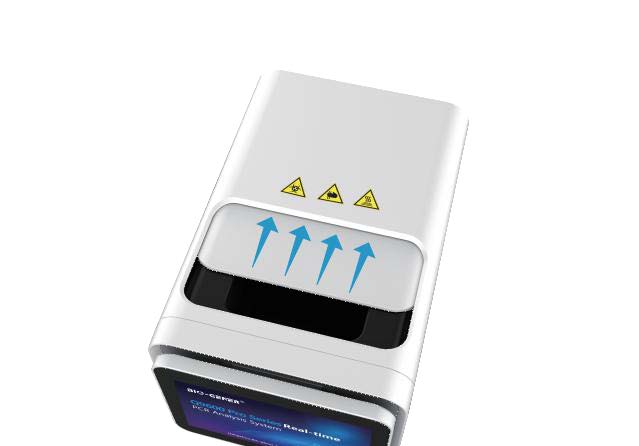

Configure automation hot lid, can be used with automation workstation, improve work efficiency

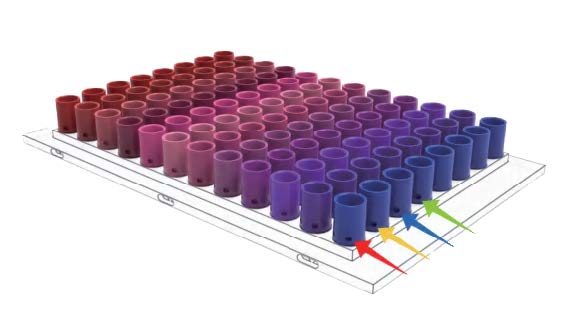

Unique side scan technology, all channels can be detected simultaneously, complete the scan of
all fluorescent channels of 96 samples within 5S

Parameters Q9600 Pro Series

Model/Specification

Specification Q9602 Pro Q9604 Pro Q9606 Pro
Sample Capacity 96 well, 12×8 strip, 96×0.2ml single tube
Formats 0.2ml tube, 0.2ml 8-tube strips, 0.2ml 96 well plate
Reaction Volume 10–100 µl

Temperature Control Performance

Parameter Value
Temperature Range 0–100°C
MAX. Ramp Rate 8°C
Temp. Fluctuation ≤±0.1°C
Uniformity ≤±0.2°C
Accuracy ≤±0.1°C
Gradient Speed 0.1–42°C
Hot Lid Temperature 30°C–115°C (Adjustable, default 105°C)
Temperature Control Block/Tube

Optical Performance

Parameter 2 Channel 4 Channel 6 Channel
Excitation Wavelength 300–810nm
Emission Wavelength 500–810nm
Detection Method All channels scan at the same time
Scan Period 5 seconds to complete 96 well test
Factory Calibrated Dyes F1: FAM/SYBR-Green/EVA-Green
F2: HEX/VIC/JOE/TET/YELLOW		 F1: FAM/SYBR-Green/EVA-Green
F2: HEX/VIC/JOE/TET/YELLOW
F3: ROX/Texas Red
F4: Cy5		 F1: FAM/SYBR-Green/EVA-Green
F2: HEX/VIC/JOE/TET/YELLOW
F3: ROX/Texas Red
F4: Cy5
F5: Cy5.5
F6: CY3
Excitation Long life LED
Detection High sensitivity photoelectric detector
Dynamic Range 1–10 Copies
Sensitivity 1 copy

Parameters Q9600 Pro Series

Control System

Parameter Value
Lid Operation Automatic hot lid
Feature Function Qualitative/absolute quantification, relative quantitative, genotyping, HRM, melting curve, standard curve, allele identification, temperature gradient function, etc.
Data Management Audit Trail System
Operation System Win7, Win10, Win11
Remote Monitoring Can be connected to laboratory management system
Automation Platform Can be used with automated workstations
Data Export Formats xls, csv, txt, pdf, jpg
Printing Report can be printed directly
Control Method 12.1-inch retractable LCD touch screen control or connect to computer control
Communication USB2.0, RS232

Other Performance

Parameter Value
Dimension 520×350×330mm (L×W×H)
Weight 32 KG
Voltage 100–220VAC, 50–60Hz
Power 1500W

PCR Thermal Cyclers

RePure Series

Reliable and flexible thermal cycling for every lab application

Promotion

Model Detection Channel List Price Promo Price
RePure-A 96×0.2 mL, Normal Gradient 3.800 € 3.099 €
RePure-A(F) 96×0.2 mL, Normal Gradient 4.500 € 3.599 €
RePure-A (384) 384 well, Normal Gradient 4.400 € 3.499 €
RePure-B 16×0.2 mL ×6, Dynamic Gradient 4.800 € 3.799 €
RePure-F 96×0.2 mL, Normal Gradient 5.200 € 3.999 €
RePure-C 96×0.2 mL, 2D Gradient 6.200 € 4.699 €

Feature RePure Series

01.
Long service life Peltier heating units.
02.
High heating and cooling rate, max. Ramping rate 9.5°C/s, can save your precious time.
03.
Gradient types are normal gradient, linear gradient, dynamic gradient, and two dimensional gradient.
04.
Air channel is in front and back and it allows machine placed side by side.
05.
Hot lid temperature is adjustable to meet different experiment’s need.
06.
WIFI module built-in, one unit can control multiple PCR machine through computer or cell phone with internet connection.
Normal

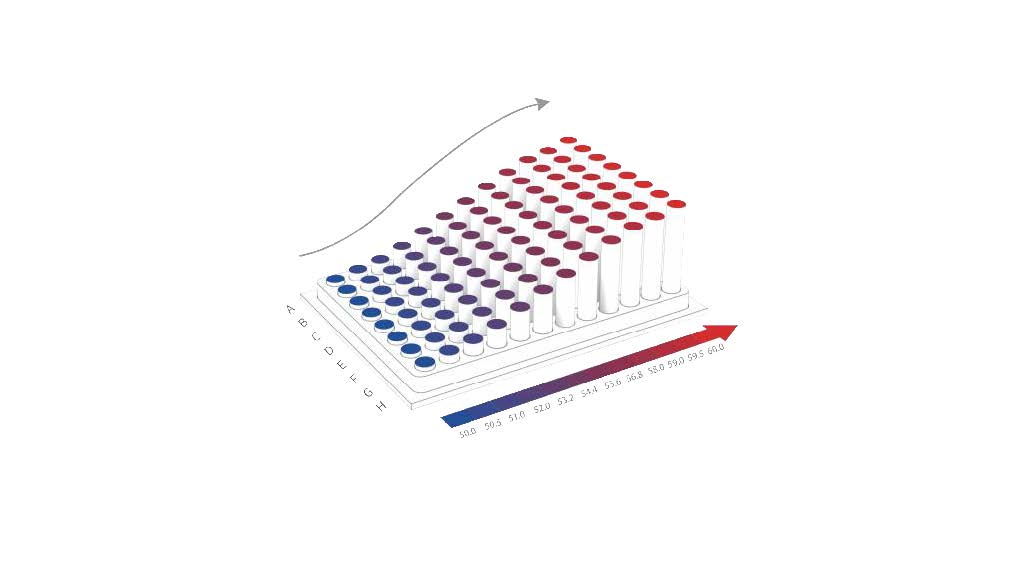

Linear

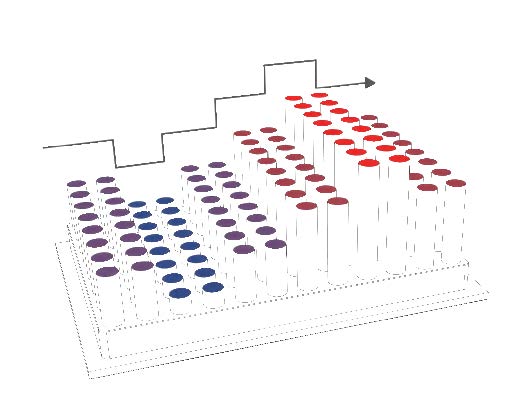

Dynamic

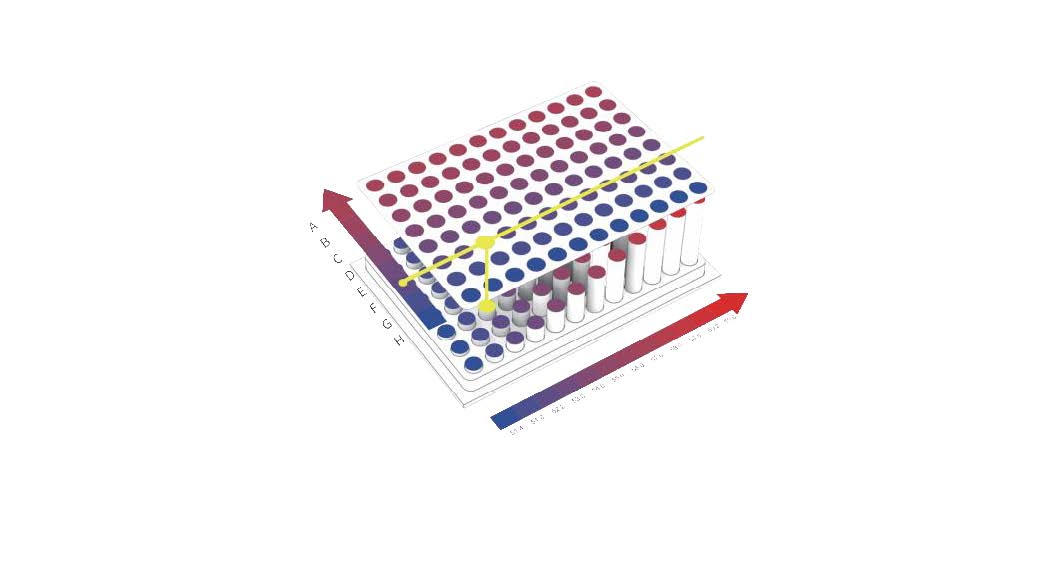

Two Dimensional

Parameters RePure Series

Model/Specification

Specification RePure-A RePure-A(F) RePure-A(384) RePure-B RePure-F RePure-C
Sample Capacity 96×0.2ml 384 well 6×16×0.2ml 96×0.2ml
Formats 0.2ml tube, 8 strips, 12 strips, Half skirt 96 wells plate, No skirt 96 wells plate 384 PCR microplate 0.2ml tube, 8 strips, 12 strips, Half skirt 96 wells plate, No skirt 96 wells plate
Reaction Volume 5–100 µl 5–30 µl 5–100 µl

Temperature Control Performance

Parameter RePure-A RePure-A(F) RePure-A(384) RePure-B RePure-F RePure-C
Temperature Range 0–105°C
MAX. Ramp Rate 6°C/s 7°C/s 5°C/s 6°C/s 8°C/s 9.5°C/s
Uniformity ≤±0.2°C
Accuracy ≤±0.1°C
Display Resolution 0.1°C
Temperature Control Block/Tube
Ramping Rate Adjustable 0.01–6°C/s 0.01–7°C/s 0.01–5°C/s 0.01–6°C/s 0.01–8°C/s 0.01–9.5°C/s
Hold at 4°C Forever

Gradient Performance

Parameter RePure-A RePure-A(F) RePure-A(384) RePure-B RePure-F RePure-C
Gradient Temp. Range 30–105°C
Gradient Type Normal/Linear Dynamic Normal/Linear Normal/Linear/2D
Gradient Spread 0.1–42°C Six zone, each zone 0.1–5°C 0.1–42°C Horizontal: 0.1–42°C
Vertical: 0.1–30°C

Hot Lid Function

Parameter Value
Hot Lid Temperature 30–115°C

Parameters RePure Series

Software Function

Parameter RePure-A RePure-A(F) RePure-A(384) RePure-B RePure-F RePure-C
Number of Programs 200,000+ (USB FLASH)
Max. No. of Steps 30 (Multiple nested PCR experiments) 40 (Multiple nested PCR experiments)
Max. No. of Cycles 200 (Up to 100,000 in nested cycles)
Time Increment/Decrement 1s–600s, Long PCR is available
Temp. Increment/Decrement 0.1–10.0°C, Touchdown PCR is available
Pause Function Yes
Auto Data Protection Yes
Temperature Curve Record hot lid and module temperatures in real time, with a 60-minute recording time on a single page and a sliding view
GLP Report Record the running information of each step of the program, and can export CSV, PDF format report
File Encryption Function Individual program files can be encrypted
User Management Privilege Three levels of access (administrator, user, guest)
Email Notification Email notification after experiment is over
Lock Screen Function Prevents accidental termination of the program being experimented on
PC-LINK Function Simultaneous on-line monitoring of more than 250 instruments
Mobile Phone APP Simultaneous on-line monitoring of more than 250 instruments

Other Performance

Parameter RePure-A RePure-A(F) RePure-A(384) RePure-B RePure-F RePure-C
Communication USB 2.0, WIFI
Dimensions 385mm×270mm×255mm (L×W×H)
Weight 10 kg
Power Supply 100–240VAC, 50/60Hz, 600W 100–240VAC, 50/60Hz, 750W 100–240VAC, 50/60Hz, 600W 100–240VAC, 50/60Hz, 1200W
